The BC557BTA is a standard PNP, a general-purpose transistor, and one of many small-signal transistors in the family. It is an amplifier and switching unit from Fairchild Semiconductor designed for use in low-power electronic devices. The BC557BTA has become a favourite among engineers, students, and hobbyists because of its dependable, multipurpose, and easy-to-use features.
This writing will be a review of the first-hand experience of the transistor Fairchild BC557BTA, its specifications, pinout, and equivalent, as well as the most common applications of the electronic circuit.
Overview of Fairchild BC557BTA
The BC557BTA is a PNP network transistor with a maximum collector current of -100 mA and a maximum collector-emitter voltage of -45V. It is a general-purpose transistor, making it suitable for low-noise stages in audio amplification, switching small loads, and signal processing applications.

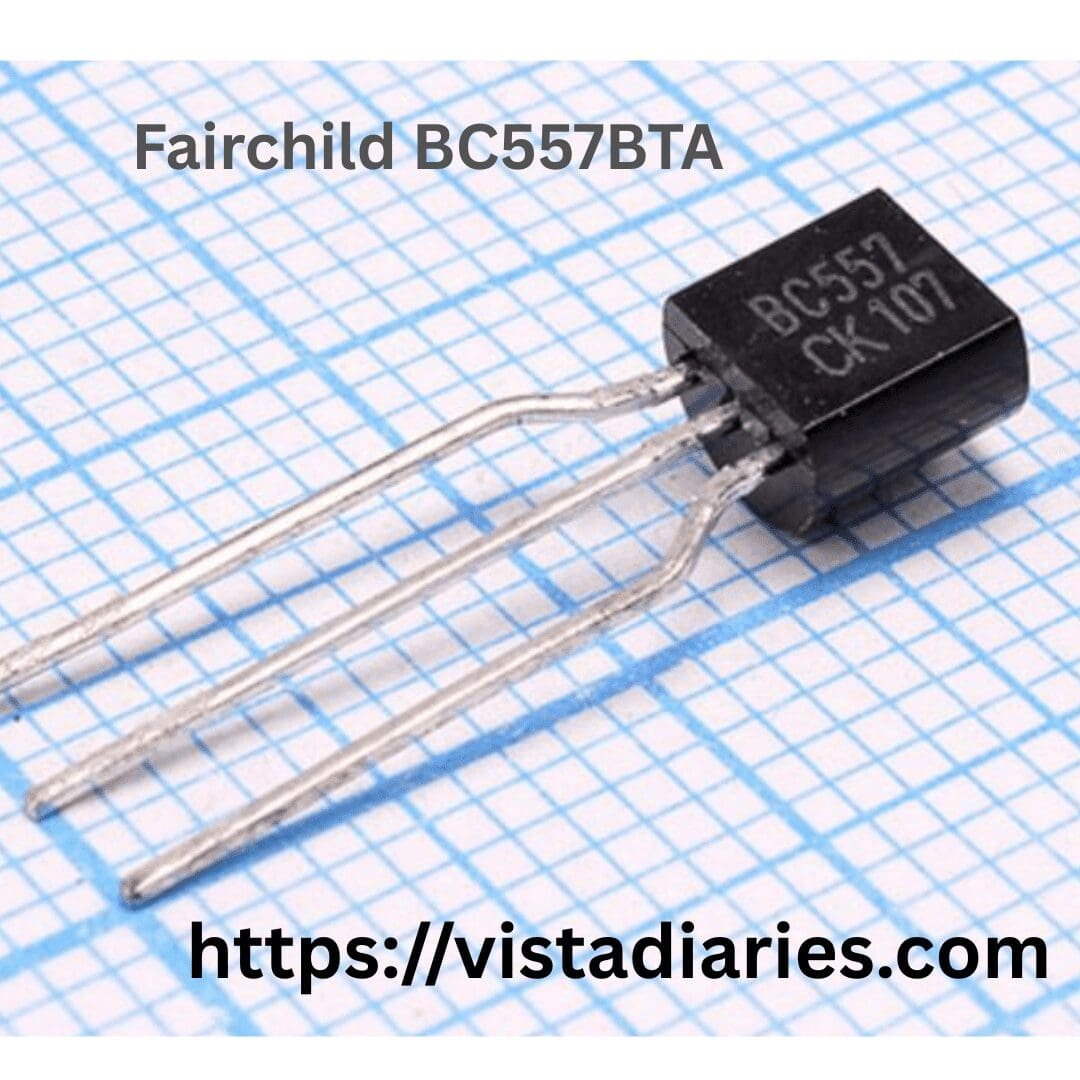

As a Fairchild PNP general-purpose transistor, it is packaged in a TO-92, a compact, well-suited package for PCB-based designs.
Fairchild BC557BTA Pinout
The transistor is in a typical TO-92 package that has three pins:
Pin 1 (Collector) – This terminal has a current flow out of it.
Pin 2 (Base) – Plays the role of control terminal.
Pin 3 (Emitter) – Current is fed into the transistor through this pin.
This pinout is necessary to familiarise oneself with the circuit connections, as improper connections are likely to cause the Circuit to fail.
Key Specifications of BC557BTA
These are the most significant Fairchild BC557BTA specifications:
Transistor Type: PNP
Collector-Emitter Voltage (Vce): -45V
Collector-Base Voltage (Vcb): -50V
Emitter-Base Voltage (Veb): -5V
Collector Current (Ic): -100mA
DC Current Gain (hFE): 110 – 800
Transition Frequency (ft): 150 MHz
Power Dissipation (Ptot): 500 mW
Package Type: TO-92
The following specifications demonstrate the popularity of the BC557BTA Fairchild transistor, a low-power, general-purpose device suitable for a wide range of applications.
Features of Fairchild BC557BTA
Some of the peculiarities are:
High-performance as an audio stage.
Better amplification with high DC gain.
Straightforward biasing requirements.
In a through-hole TO-92 package.
Works with other similar transistors such as 2N3906 and BC558.
These characteristics and advantages of the BC557BTA make it a reliable component in electronic circuits.
Applications of BC557BTA
The BC557BTA transistor is a PNP type, which is very versatile and widely used in low-power electronic circuits. Since it can handle moderate voltage and current, it can be used in almost any type of general-purpose circuit. Some of them are listed below:
- Signal Amplification: Commonly found in audio preamplifiers and in low-frequency amplifying stages where the stable gain characteristics are required.
- Switching Circuits: Can be used to cut off or break control of small loads, such as LEDs or relays, in microcontroller-based or low-current electronic projects.
- Analogue signal Processing is indispensable in circuits such as filters, oscillators, and sensor interfaces.
- Darlington Pair Configurations: These can be combined with other transistors to form a Darlington configuration, resulting in higher current gain.
- Voltage Regulation: This concept is also applicable in biasing circuits and voltage regulators, where it helps stabilize current flow.
- Complementary Pair Circuits: Typically, the transistor is paired with an NPN one (e.g., BC547) to form a push-pull amplifier configuration.
To put it briefly, the BC557BTA is a reliable device for low-noise amplification, signal control, and switching; thus, it is widely used in educational and professional electronics projects.
Practical Circuit, using BC557BTA.
A typical real-world application is the LED control circuit:
The transistor BC557BTA can be used to switch either an LED on or off.
The presence of a small base current allows current to flow between the collector and emitter, and the LED is illuminated.
This renders it ideal for switching with low power consumption.
Similarly, the BC557BTA is commonly used in audio circuits for pre-amplification stages that require low noise and constant gain.
Why Choose Fairchild BC557BTA?
With its reputation for producing high-quality semiconductor devices, Fairchild Semiconductor is confident that the BC557BTA transistor is dependable, robust, and performs well over time in various applications. It is the ideal option for both engineers and students due to its affordability, efficiency, and accessibility.
Conclusion
The Fairchild BC557BTA PNP transistor is a low-profile, high-efficiency transistor commonly used in low-power circuits. Its high specifications, pinout design, and general-purpose applications still make it the first choice even today in learning environments and professional projects. The BC557BTA transistor is a dependable, versatile device suitable for audio amplification, switching, and signal processing applications.
Knowing its datasheet specifications, pin layout, and applications, one can easily incorporate the BC557BTA Fairchild transistor into circuit boards to ensure optimal performance.
